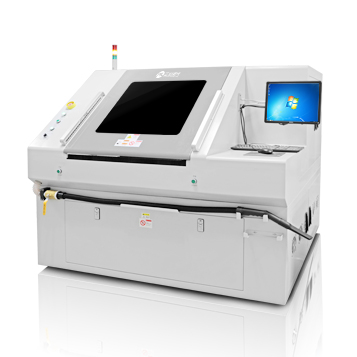

FPC UV Laser Cutting Machine JG18

Brand: ASIDA

Model : JG18

Certification: CE

Place of Origin: China

Packaging Details: Wooden Carton

Facebook
Qzone
LinkedIn
Sina Weibo
Twitter
Tencent Weibo
Pinterest
WeChat
Google+

Usage
Features
Parameters
Video

The machine is used in cutting,opening the window and uncovery for CVL/FPC/RF and thin multilayer board, as well as cutting a variety of substrates, such as ceramic, silicon etc.

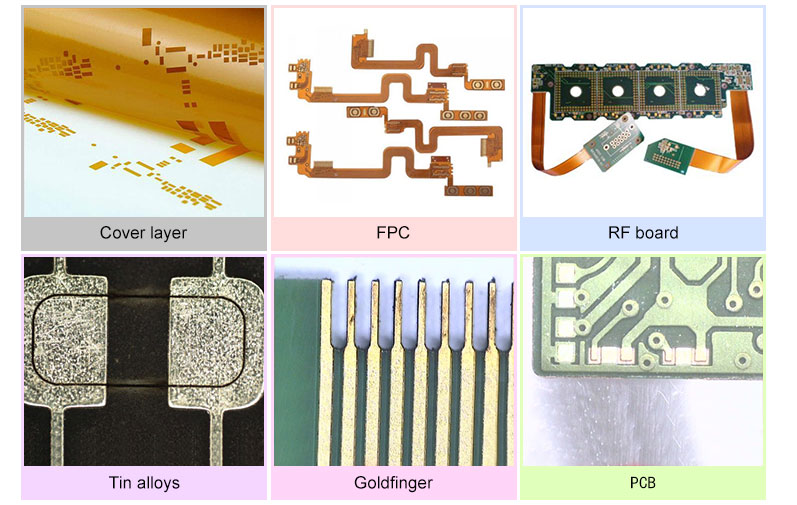

UV Laser Cutting Sample：

1.Precision：Adopting linear motor module,servo control, sizing compensation, optical positioning and secondary positioning technologies.

2.High quality: Little carbonization and high density graphics cutting.

3.Highly intelligent,efficient：With multi-panels cutting,auto-positioning,auto-correcting,automatic sizing compensation and exclusive cutting previews functions.

Specification of UV Laser Cutting Machine
Model	JG18
Wavelength	355nm
Laser Power	Standard 10W,12W/15W option
Laser Frequency	30-120kHz
Maximum Processing Size	720mm x 540mm
Maximum Operating Speed	800mm/s
Positioning Accuracy of Table	±3μm
Repetitive Positioning Accuracy of Table	±1μm
Total Accuracy	±20um
light spots	20±5μm
Scanning range	45mmx45mm
File Format	.gbr & .dxf & *.lay
Electric Power Supply	AC220V/2kW； AC380V/5.5kW
Dimensions(L x W x H)	1780mmx1610mmx1650mm
Weight	2300kg
Environmental Temperature	20±2℃
Environmental Humidity	≤60%RH, Non-condensing
Ground Amplitude	≤5μm
Ground Pressure	≥1000Kgf/m²
