UV Laser Cutting Machine JG16C

Model : JG16C

Certification: CE

Place of Origin: China

Packaging Details: Wooden Carton

Facebook
Qzone
LinkedIn
Sina Weibo
Twitter
Tencent Weibo
Pinterest
WeChat
Google+

Usage
Features
Parameters
Video

The UV laser cutting machine is used in cutting,opening the window and uncovery for CVL/FPC/RF and thin multilayer board, as well as cutting a variety of substrates, such as ceramic, silicon etc.

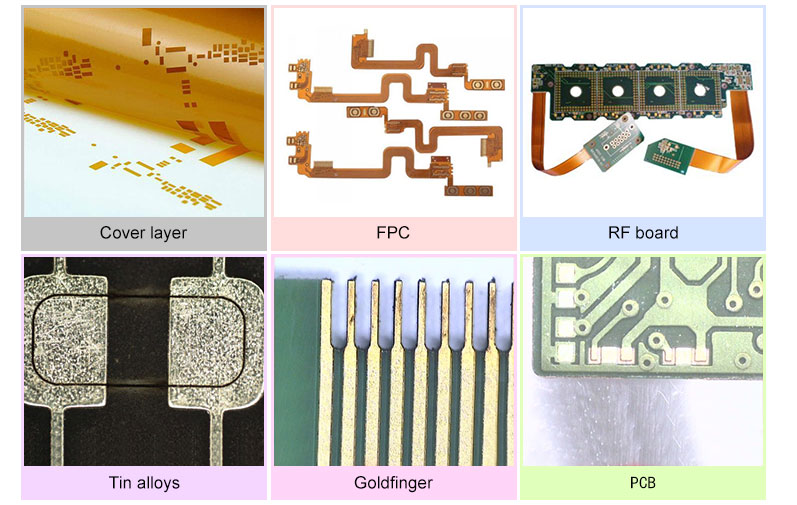

UV Laser Cutting Sample：

A : Two tables to cycle working one by one,no preparing time,high processing efficiency.

B : Preview function before processing to avoid damaging sample.

C : Bar code marking function.

Specification of UV Laser Cutting Machine
Model	JG16C
Wavelength	355nm
Laser Power	Standard 10W，Option 15W
Laser Frequency	30-120kHz
Maximum Processing Size	650mm x 550mm (Double platforms）
Maximum Operating Speed	800mm/s
Positioning Accuracy of Table	±3μm
Repetitive Positioning Accuracy of Table	±1μm
Total Accuracy	±20um
light spots	20±5μm
Scanning range	45mmx45mm
File Format	.gbr & .dxf & *.lay
Electric Power Supply	AC220V/2kW； AC380V/5.5kW
Dimensions(L x W x H)	1780mmx1610mmx1650mm
Weight	3600kg
Environmental Temperature	20±2℃
Environmental Humidity	≤60%RH, Non-condensing
Ground Amplitude	≤5μm
Ground Pressure	≥1000Kgf/m²
