Features of Our Line Width Measuring System

■ Ensure high stability and rigidity

■ Wide range of measurement capabilities can quickly and accurately test the PCB line width, line spacing

■ Equipped with imported professional measurement software, testing more accurate, more authoritative data

■ Suitable for: inner plate, outer plate, blind hole, film

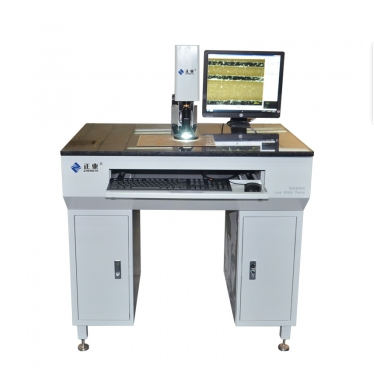

Line Width Measuring System

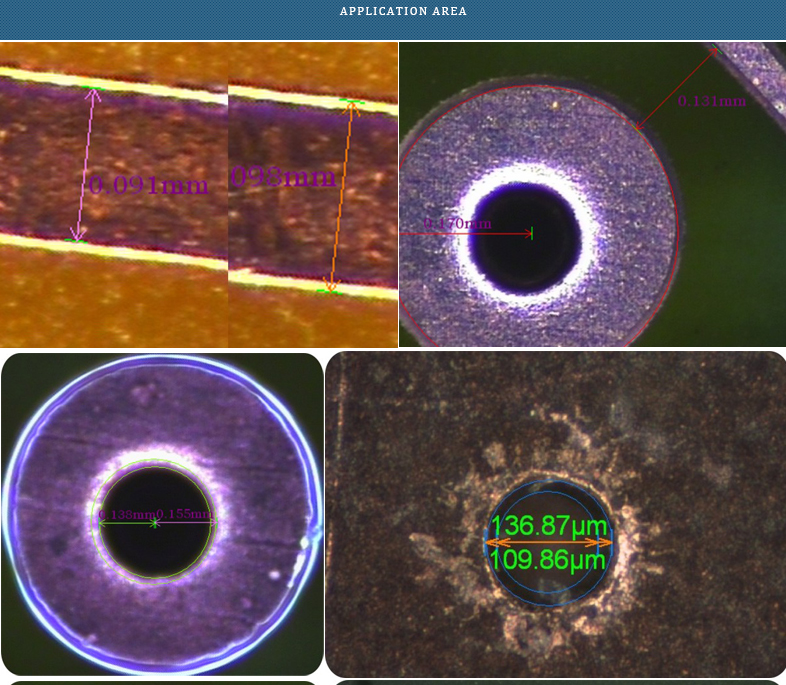

Application Area of Line Width Measuring System

Accuracy

Using precision focus device, and image processing, automatic search and sub-pixel edge algorithm and other technologies.

Efficient

1. Red LED positioning

2. Automatic edge search technology

3. With SPC statistical analysis
