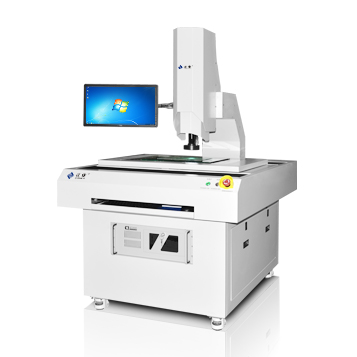

Coordinate Measuring Machine

Brand : ASIDA
Model : ASIDA 6050A, ASIDA8060A, ASIDA120100A, ASIDA 220180

Facebook
Qzone
LinkedIn
Sina Weibo
Twitter
Tencent Weibo
Pinterest
WeChat
Google+

Usage
Features
Parameters
Video

Coordinate measuring machine is used to measuring includes: points, lines, circles, rectangles, angle, contour, shape, surface shape and other geometric elements. A three-dimensional measuring probe is optional.

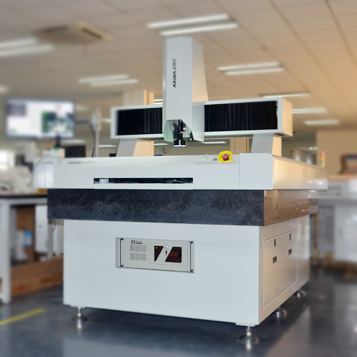

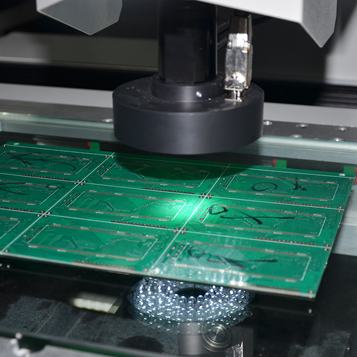

Coordinate Measuring Machine sample :

(1)Optical system provides bright and clear images.

(2)Air bearings on the X and Y axis for extended productivity.

(3)High quality German made edentulous lead screw are used on the machine.

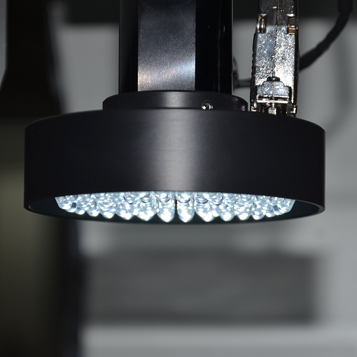

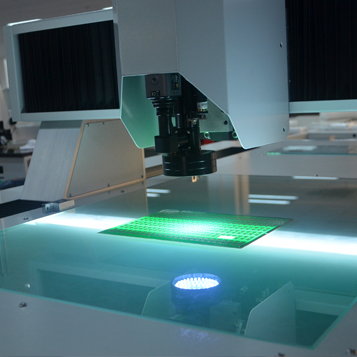

(4)Long-life LED ring provides a cold light source that will not produce thermal deformation.

(5)Panasonic three-axis servo motor drive.

(6)Solid granite base and column for increased stability.

Item	ASIDA6050A	ASIDA8060A		ASIDA120100A	ASIDA220180A
X.Y.Z Stroke	600×500×200 mm	800×600×200mm		1200×1000×200mm	2200×1800×200mm
Loader Size	650×550mm	750×650 mm		850×750mm	860×660 mm
Max Loading	30KG
Base Materials	00 Granite
Objective Lens Focal	90mm
Objective lens	0.75X~5X
Total Max Magnification	25X~180X
Grating Solution)	≤0.001mm
X\Y Linear Accuracy	≤(2.5+L/200)um		≤(3+L/200)um
Repeat Accuracy	≤±0.003mm
Total Machine Size(mm)	1850×1960×1800	1950×2060×1800		2500×1800×1800	3550×3000×1900
Total Machine Weight	1800Kg	2000Kg		3800Kg	7500 Kg
Measuring Software	ASIDA MEASURE VMA 3.00.01(language CHS, CHT, English)
Data Output Format	DXF\EXCEL\WORD
OS	Windows XP Pro WIN7
PC(PC Requirement)	CPU:(Dul Core),≥2G(Memory),≥320G(Hard Disk)
Power	220/50HZ(200V/50HZ)
Work Environment	(Temperature):20+/-2OC;(Humidity):45%~75%;(Vibration):<0.002g,<15Hz
Optional Accessories	NAVITAR(USA NAVITAR Lens System);Renishaw (UK Renishaw Probe System);(Japan Keyence Laser Sensor System)
Remark	(The stroke of machine can be customized depending customer requirements)
