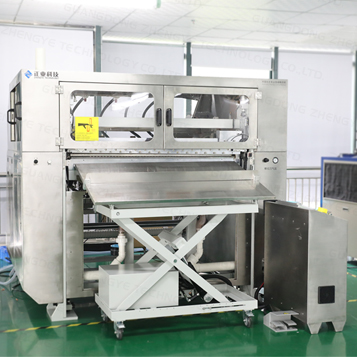

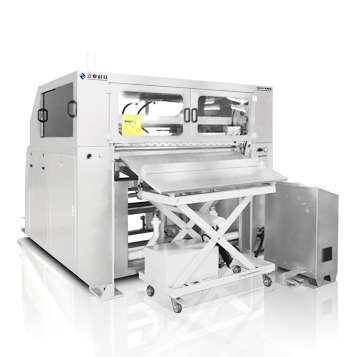

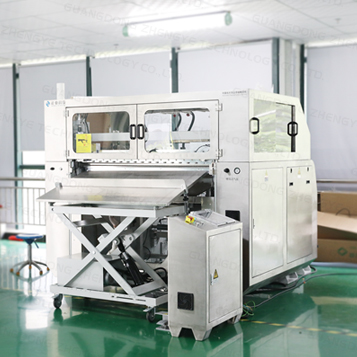

Prepreg Automatic Cutting Machine (CQ2000C)

Model : CQ200C

Place of Origin: China

Packaging Details: Wooden Carton

Facebook
Qzone
LinkedIn
Sina Weibo
Twitter
Tencent Weibo
Pinterest
WeChat
Google+

Usage
Features
Parameters
Video

The machine is used for cutting rolled prepreg, to solve the problem of prepreg spreading and too much dust in cutting and after cutting so as to improve the cutting accuracy, quality and efficiency.

A . The first company to adapt infrared preheating technology in prepreg cutting.

B . Low dust, environmental protection, preheating then cutting, automatic sealing side, without drawing;Increase the dust collection device, through the detailed calculation and analysis of fluid, reduce dust, environmental health.

C .Precision:

Using high precision actuator and synchronous servo control system, high cutting precision.

D . High quality:

cut the Pre-preg neatly, automatic edge banding, no drawing.

E . High efficiency:

(1)dynamic heating transverse, longitudinal cutting, cutting efficiency;

(2)After cutting the PP sheet can be used directly, without subsequent sealing side, vacuuming, etc;

(3)The precision of the cutting, further improve the cutting efficiency is further improved;

(4)PP sheet can be automatically stacked;

(5)Parameters can be packed up and brought up directly.

Specifications of Prepregs Automatic Cutting Machine
Model		CQ2000C
Cutting Accuracy		±1mm
Quality	Compared with the traditional purely mechanical cutting	Tidy cutting edge, no white edges & layered & wrinkled and charred carbonation;
Quality	Compared with the traditional purely mechanical cutting	more than 98% dust reduced
Efficiency	Cutting Frequency (take 500mm length as calculation)	≤23 times/min
Objects	Cutting Length	250mm～750mm
	Cutting Width	200mm～1270mm
	Cutting Thickness	0.02mm～0.3mm
	Slitting	Shear type / cut type; Continuous Uninterrupted Feeding;
	Pointing knife adjustment	Manual
