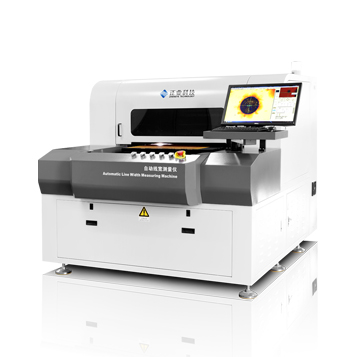

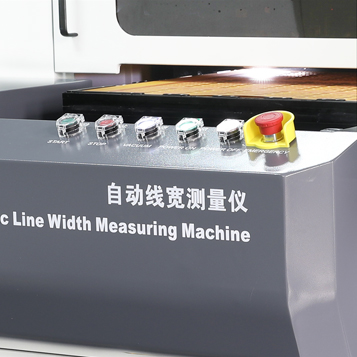

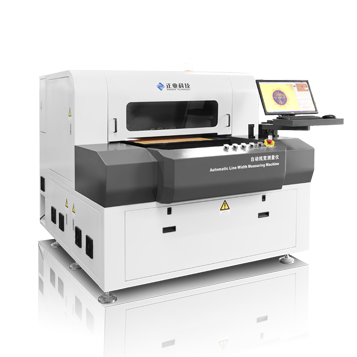

Automatic Line Width Measuring Machine XK32

Model : XK32

Place of Origin: China

Packaging Details: Wooden Carton

Facebook
Qzone
LinkedIn
Sina Weibo
Twitter
Tencent Weibo
Pinterest
WeChat
Google+

Usage
Features
Parameters
Video

The automatic line width measuring instrument XK32 is suitable for detecting the widths of the upper and lower webs of the inner and outer layers of the PCB after etching (before the green oil), as well as the distance between the etching lines and the copper lines, the hole-to-edge distance, and the round holes blind hole diameter, etc.; and suitable for line width measurement of IC wafers and LCDs.

A. Automatic positioning measurement:

The user can import the DXF data, and customize the measurement location information according to the DXF file, generate an automatic measurement program and then import the software for automatic measurement;

B. Auto focus:

When the automatic measurement is performed, the imaging system automatically focuses to ensure that the measurement position is clear and accurate;

C. Automatic switching magnification:

Automatic zoom lens, no manual switching, software online switching magnification;

D. Navigation Positioning:

Navigation image positioning function;

E. Automatic edge search:

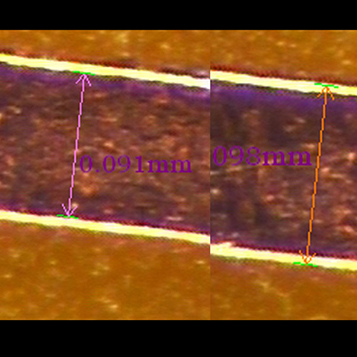

Automatically grasp the line, width of upper and lower lines, line spacing, round diameter, etc. during automatic measurement;

F. Data statistics function:

EXCEL data archiving and statistics functions; data automatically exported.

ITEM	SPECIFICATION
Model	XK32
Dimension	1700mm×2050mm×1600mm
Lens	0.7~4.5 Automatic zoom lens
Light source	LED ring light (continuous adjustable brightness)
Measuring size range	≦600mm×650mm
Navigation positioning	With CCD navigation quick positioning function
Line width measurement accuracy	1x=3um 2x=2um 3x=1um 4x=1um Note: Normally 3x magnification is adopted; authentication accuracy is of standard chip
Line width measurement range	Min 20um -Max 1200um
Measurement window field of view	0.7x=3.5mm 1x=3.2mm 2x=2.2mm 3x=1.5mm 4x=1.0mm Note: visual field deviation is within ±5%
Operating mode	Programmable save and recall program for batch automatic running measurement
Edge Measuring method	Manual and automatic edge finding
Statistics function	With EXCEL data archiving and statistics, it can automatically export data
Operating temperature	20℃~40℃
Relative humidity	3P/AC380+N+PE/50Hz/5kW
Weight	1750kg Computer not included
